Modular Assembly Technology

Company Profile

Our modular assembly technology is powered by Dalian Modular Industrial Automation Co., Ltd., a premier, publicly listed leader in global industrial automation. Since 2009, they have pioneered breakthrough conveyor technologies that drive efficiency across the world’s most demanding industries—including new energy, automotive components, home appliances, and 3C electronics.

Driven by a core philosophy of “Professionalism, Devotion, and Continuous Improvement,” this partnership allows us to deliver elite, field-tested solutions directly to you. From standalone components to fully integrated, intelligent factory systems, we provide the localized engineering support and world-class hardware your business needs to scale.

Engineered for Innovation. Built for Performance.

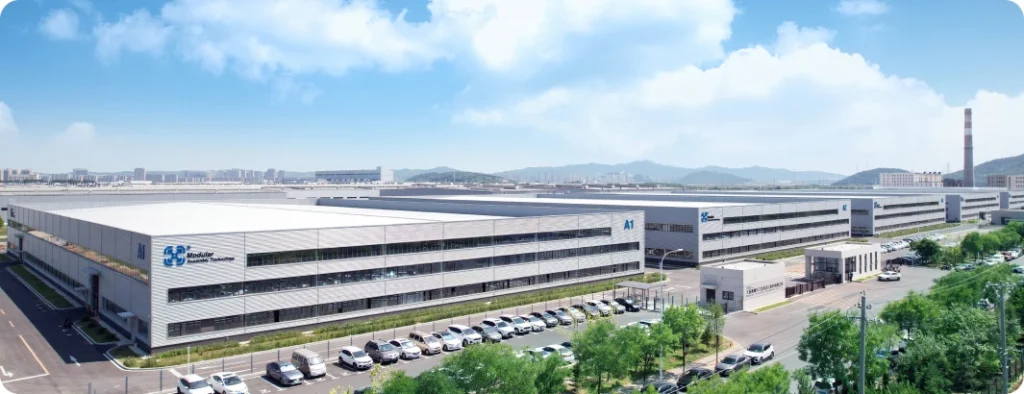

modular factory profile

IMTS (Intelligent Magnetic Transfer System)

  • High precision and high speed up to ± 0.01 mm and 3 m/s.
  • Long life and non-contact which avoid wear and tear and dust issue.
  • Modularity design of the components allows the conveyor system layout to be tailored to suit project requirements.
  • High energy efficiency as motor only consumes power when moving.

Second Generation Hybrid High Speed Roller Conveyor

With innovative dual-power hybrid drive technology combining linear electromagnetic drive and rotary motor drive, the second generation PRC system fully leverage the respective advantages of the two drive technologies. This significantly enhances the conveying efficiency and accuracy, while effectively controlling costs and energy consumption. Additionally, it offers unique advantages in product compatibility, system stability, and maintenance convenience.

Flexible Chain Conveyor

  • Capable of straight line,climbing and multi-turning conveying.
  • Maximum allowable tension ≤1250N
  • Maximum conveying speed 60 m/min

Flexible Spiral Conveyor

  • Ideal for elevating and material buffering in confined spaces.
  • Total load capacity ≤100 kg
  • Single part weight ≤3 kg
  • Maximum conveying speed 60 m/min
  • Effective conveying height difference≤ 2 m
  • Using a special spiral chain plate, customized based on customers’ needs.

ETON Roller Conveyor

Dalian ETON Industrial Innovations Co., Ltd is a wholly-owned subsidiary of Dalian Modular Industrial Automation Co., Ltd. As a specialized domestic manufacturer of conveyor rollers and logistics conveying equipment, ETON have established long-term partnerships with numerous renowned enterprises, system integrators, and research institutes in China and abroad.

Curve Belt Conveyor Line

The curved belt conveyor features a special guiding system and high-quality dedicated curved belts, ensuring smooth operation and long service life. It connects conveyors in different directions to realize direction changing of conveyed items It is widely used insorting systems such as airport baggage handling, express parcel delivery, and product packaging. The turning belt conveyos rare available in various widths.angles, and load capacities for selection.
Another advantage is that replacing the belt is very convenient and fast. Due to its ingenious buckle structure, replacing the belt does not require removing the drive unit, thus saving the disassembly time.

Gallery

Pallet Transfer Conveyor Line

A pallet conveying system consists of a variety of functional module units, combined to facilitate the efficient handling of materials in a production process. In an automated production line, the workpieces are placed accurately on pallets, and a conveyor transports the pallets using either a segmented start-stop method, or in continuous motion with pallet stacking and waiting.

High Precision Pallet Transfer PTS1/H

Maximum load capacity: 60 kg
Pallet width: 160-1200 mm
Conveyor Section Length: 400-6000 mm
Conveying Medium: Special toothed belt

90° Forced Curved Pallet

In a pallet conveying system, the storage, release, steering, positioning, lifting and other aspects of the pallet are precisely controlled. Even with limited spaces and sharp angle, the conveyor is designed to work without failure.

High Quality Aluminum Components

The Modular Assembly System (MAS) is composed of industrial aluminum profiles and their accessories. The wide variety of components enables quick assembly into any form such as Industrial Stair and Platform System (SPS) and Tubular Framing System (TFS).

Heavy Duty Gravity Roller

  • High Load Capacity: Reinforced steel construction engineered to withstand heavy pallets and industrial containers without warping.

  • Precision Ball Bearings: Double-shielded bearings ensure smooth, quiet operation and long service life with minimal rolling resistance.

  • Low Maintenance: A robust, power-free mechanical design that eliminates electrical component wear and reduces operational costs.

Gallery
